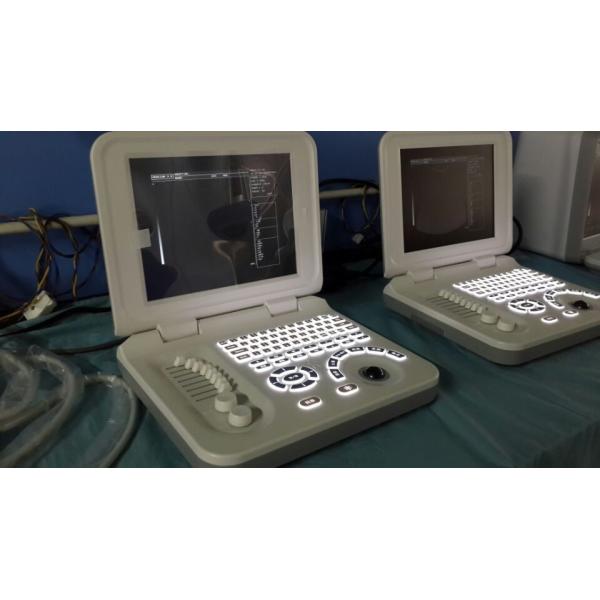

Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe

  • 1
  • 2
  • 3

Brand Name : Xianfeng

Model Number : XF30

Certification : CE, ISO;FSC

Place of Origin : Made In China

MOQ : 3-5pcs

Price : 1000USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set Per Day

Delivery Time : 5-8days

Packaging Details : Carton

Product Name : Portable veterinary Ultrasound Machine

Type : Notebook veterianry Ultrasound

Application : veterinary, animal hospital, clinic

Display : 10" monitor

Display mode : B、2B、4B、B/M、M

Key Board : Standard Key Board And Backlight Key

Image gray scale : 256 gray scale level

Probe : Convex Probe;rectal probe

Probe Socket : One probe sockets

Output Interface : PAL Video Output,SVGA Video Output,USB

Contact Now

Professional Full Digital 10.4 Notebook Ultrasound Machines For Veterinary Use

Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe

Pig,dog,Cat, sheep, horse, cattles,camels, cows and other animals

PW SWINE-HL--head diameter,

PW DOG-GS--sac diameter,

PW DOG-HD---fetal head diameter,

PW DOG-CRL---the diameter of the head to the hips)-,

PW DOG-BD

PW CAT-BD,

PW SHEEP-HD---Head and neck diameter

PW SHEEP-TD---the trunk diameter,

PW EQUINE-CD

PW CATTLE-CRL,

PW CATTLE-HD,

PW CATTLE-HL,

PW CATTLE-TD

Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe

Standard Configuration


1. Main machine:one
2. convex probe: F=3.5MHZ
3. power adapter:1
4. Rechargeable Li battery:11.1 V 2500mAH
5. USB port: 2
6.User Manual and instruction manual
7.Warranty Card
Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe
Display mode B;B/B;4B;B+M;M
Display size 10.4inch LED displayer
Image multiplying factor

3.5MHz/R60 convex array probe:

x0.8; x1.0, x1.2, x1.5, x1.8, x2.0( 6 modes)
E-zoom Magnify 2 times Magnifying
Dynamic range 0~120db adjustable dynamic range
Focus position Dynamic electron focusing
Image proessing
8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale 256 levels
Frequency conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide 3.5MHz convex array probe can display punture guide in B mode
Gain control 8segments TGC and overall gain can be adjusted respectively
Image polarity Left and right flip; up and down flip
Capacity cine loop Real time display 256 consecutive images which are moemorized successively
Image playback Series playback or check one by one
Standard configuration Ultrasound machine with 3.5Mhz convex array probe and power adapter
Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe
Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe
Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe
Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe
Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe

Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe

Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe

Notebook Veterinary Ultrasound Machines Digital Ultrasound Scanner Rectal Probe

We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
